H.265 Max 4K Output CCTV NVR 10CH 16CH 32CH 36CH 4K Security Video H.265 Motion Detect P2P CCTV NVR Face Detection

Regular price £44.20 GBP

Regular price ~~£0.00 GBP~~ Sale price £44.20 GBP

Unit price / per

Sale Sold out

Taxes included.

Video Input 16CHVariant sold out or unavailable 9CHVariant sold out or unavailable 32CHVariant sold out or unavailable 10CHVariant sold out or unavailable 36CHVariant sold out or unavailable

Ships From CHINAVariant sold out or unavailable Russian FederationVariant sold out or unavailable

Quantity

(0 in cart)

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

SPECIFICATIONS

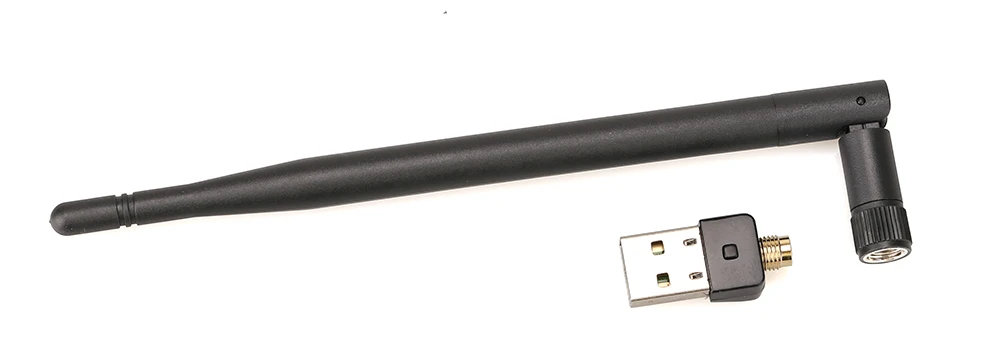

3G Wifi: 9CH/16CH/32CH Support 7601 Wifi adapter

Alarm Action: FTP Photo,Email Photo,Local Alarm

Audio Compression Format: G711A

Audio Input: 1 Channel

Audio Out: 1CH

Audio Output: None

Backup Type: Hard Drive

Brand Name: USAFEQLO

CMS: Support

Certification: CE

Communication Interface: RS232

Compression Format: H.265,H.264

HDD: up to 8TB(3.5ch HDD)

Hard Drive Size: 3.5''

Hard drive Interface Type: SATA

Hign-concerned Chemical: None

IP Mode: Static IP address

Main Processor: XM/ Mstar/ Mstar/ NOVA

Model Number: 40X/S/xx-KL

Network Interface: RJ45 10/100M

Network Protocol: TCP/IP,DHCP,SMTP,HTTP,DDNS,UPNP,PPPoE,FTP,DNS

Origin: Mainland China

POE: None

Phone: Mobile phone, I-Pad, I-Phone, etc

Power supply: 12V2A

Smart home platform: other

Supported Mobile Systems: iPhone OS,Android,Windows Mobile

Supported Operating Systems: Microsoft Windows 98,Microsoft Windows ME,Microsoft Windows 2000,Microsoft Windows XP,Microsoft Windows Vista,Microsoft Windows 7,Mac OS

Technology: Network

Two-way Audio: No

USB: 2* USB 2.0(Not support Keyboard)

Video Input: 9/10/16/32/36 CHANNEL IP

Video Input Interface: RJ45

Video Output: 1VGA + 1HDMI-Compatible

Video Standard: NTSC,PAL

Wireless Security: wep

e-Cloud(P2P): YES

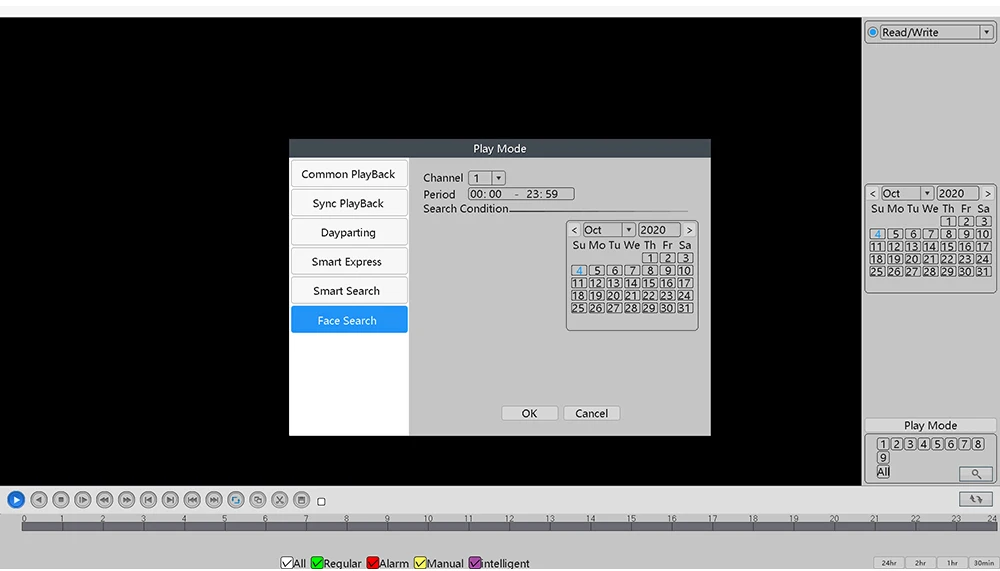

Face Detection/Human Detection/Vachile Playback

Record every face that appears on the lens, without missing any details.

Please note, to work human detection and face detection, You need to have compatible ip camera!
Compatible cameras: (Only) Netip Protocol Face IP Camera

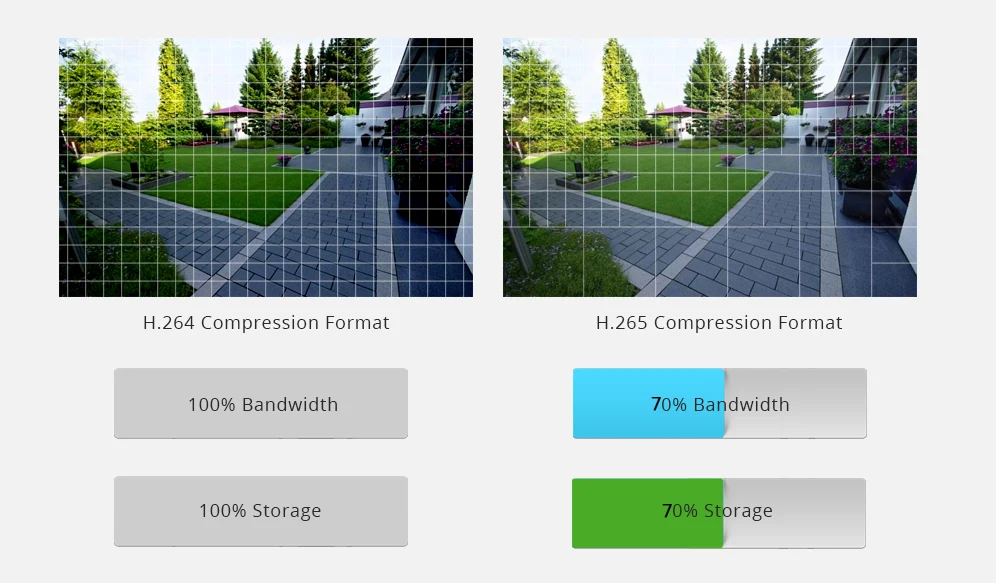

Advanced H.265++ Video Compression

H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265++ video saves around 70% of the bit rate at the same quality of coding.

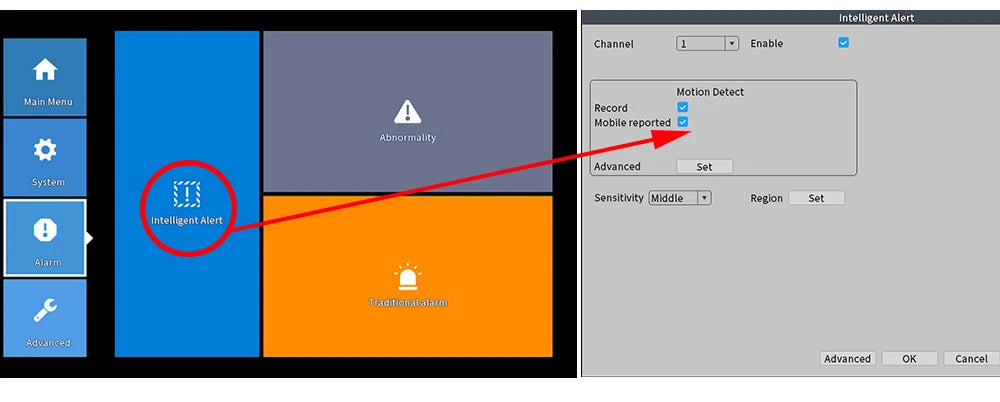

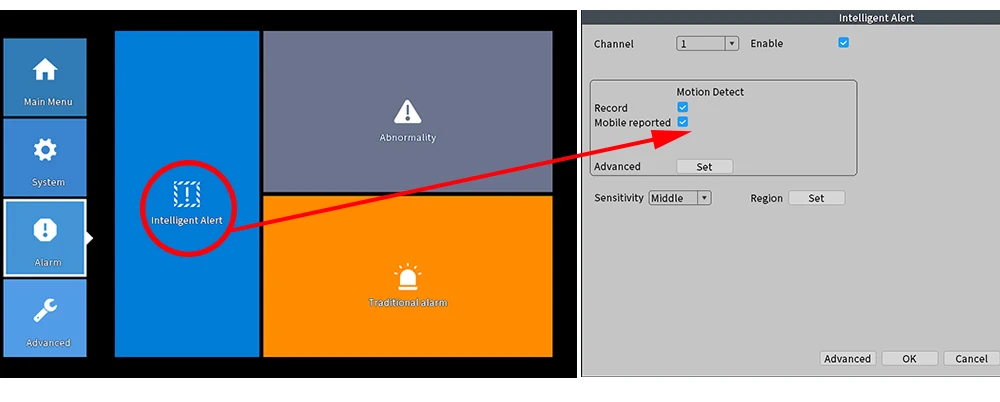

Motion Detection & Email Alert/Record

when motion is detected, the NVR can send email or start record to the hard disk without missing any important events.

4K Super HD Resulution

4K NVR provies crystal-clear images and videos with 3840x2160P HD resolution.
You will see all details that happens at your surroundings.

Product Material, Size

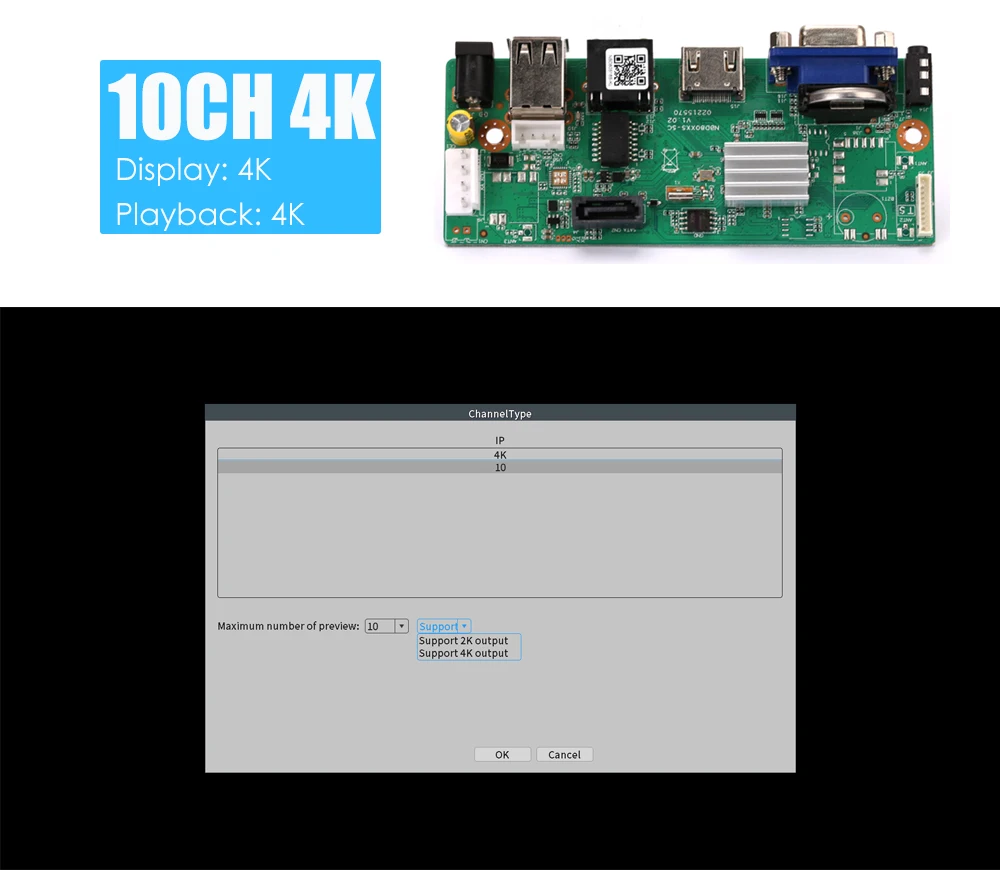

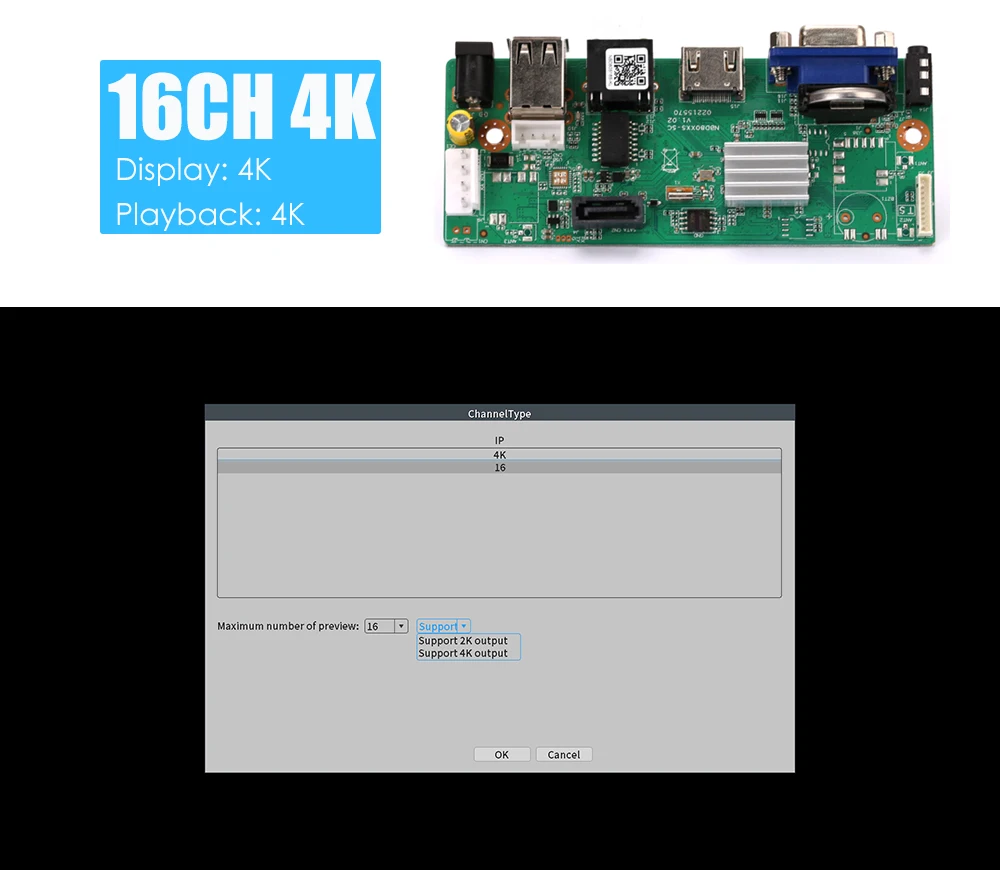

Plastic Case, built-in main Board
20x20x4CM

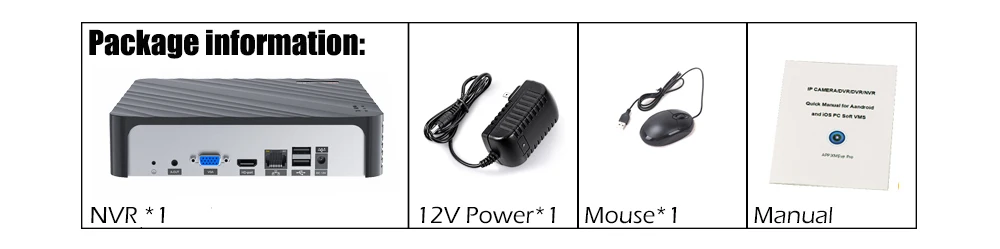

Package Information

Description of applicable cameras

One PCS HDD Support

Support 3.5CH HDD
Orgional Newest HDD Recommend
TOSHIBA, Seagate, Western Digital HDD
Others brands HDD will not work.
Recommend use the Security HDD, not PC HDD

Suitable for multiple environments

Easy remote access Anytime anywhere

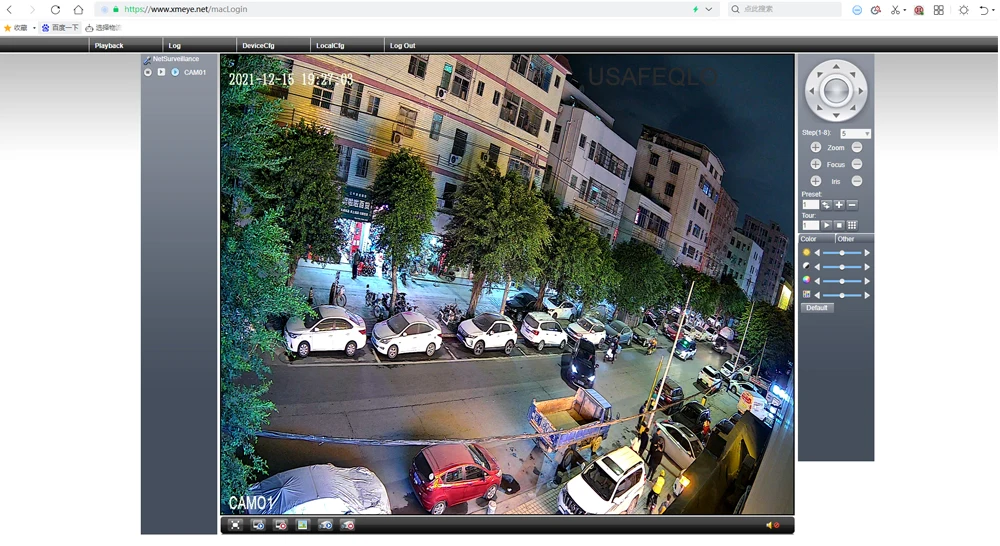

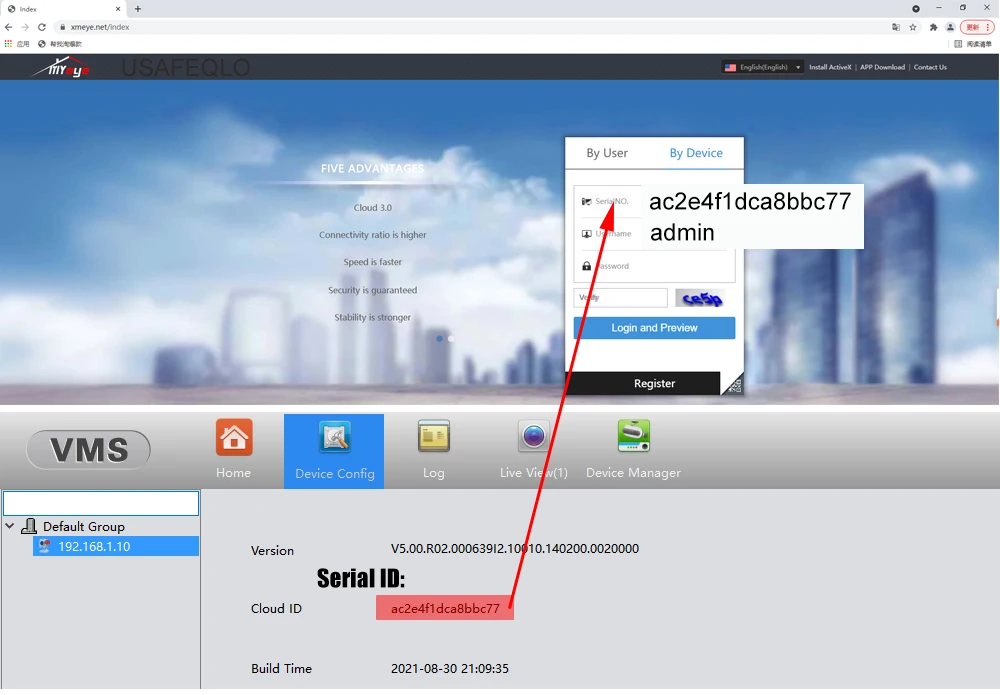

P2P technology supports remote access on the mobile device,Just intall the APP on your phone by scanning the QR cade or storing from the APP View the camera remotely anytime, any where. PC use the www.xmeye.net to visit the camera.

Features :

RTSP Function: RTSP Must work with Netip Protocol and Same Local internet, Onvif and Thired items all not support

Our NVR RTSP function only support TRSP Visit the NVR, not support ADD any other cameras.

With H.265 High efficiency Video Compression

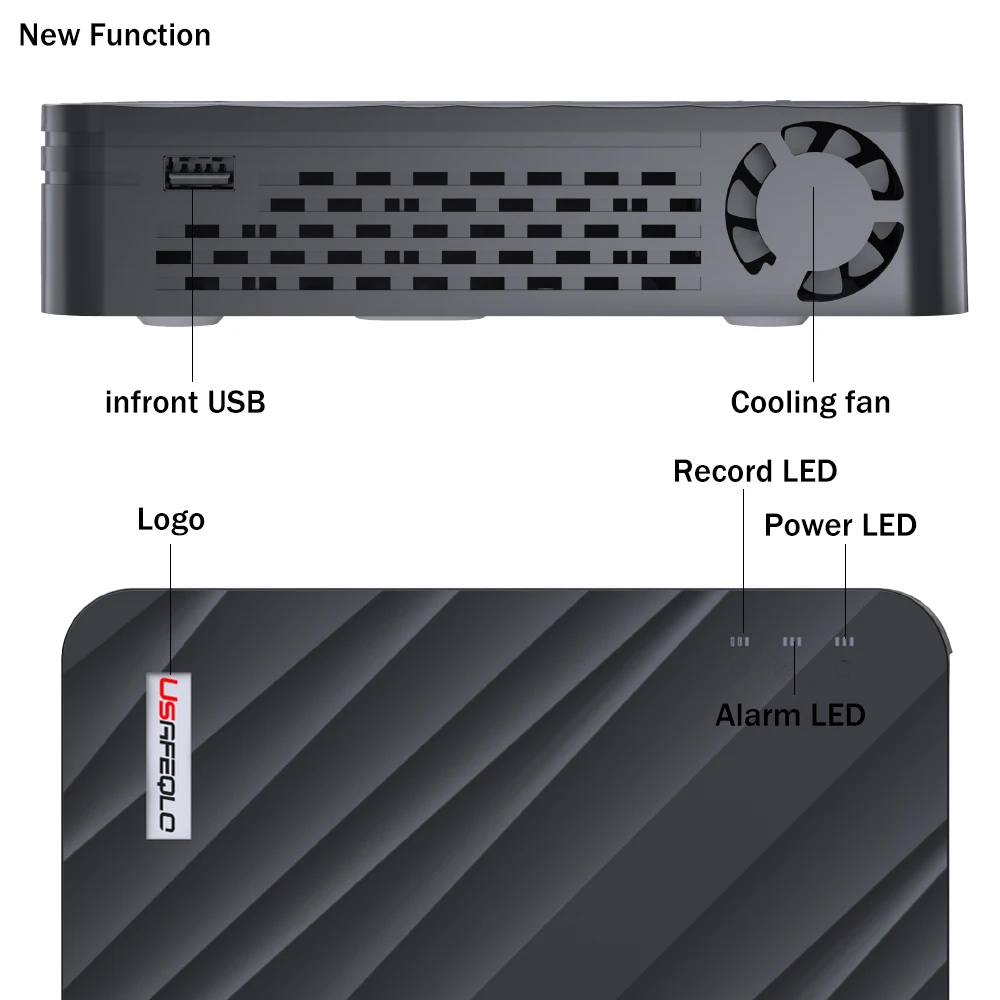

With unique time screen in front of the panel, and displays recorder.
Support Symbian S60V3/V5, Windows Mobile, Iphone, Android,, Blackberry and so on.
Support 1*HDD( 8TB), with 2*USB2.0 for backup, burning, upgrading operation

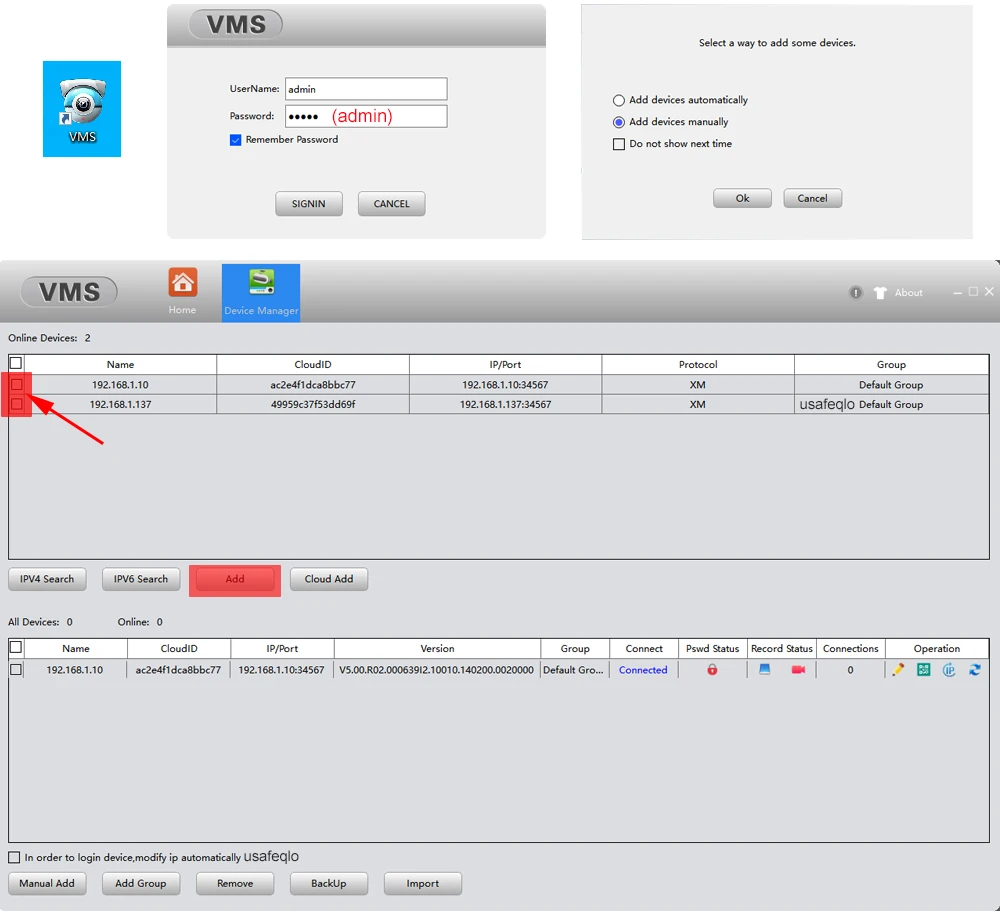

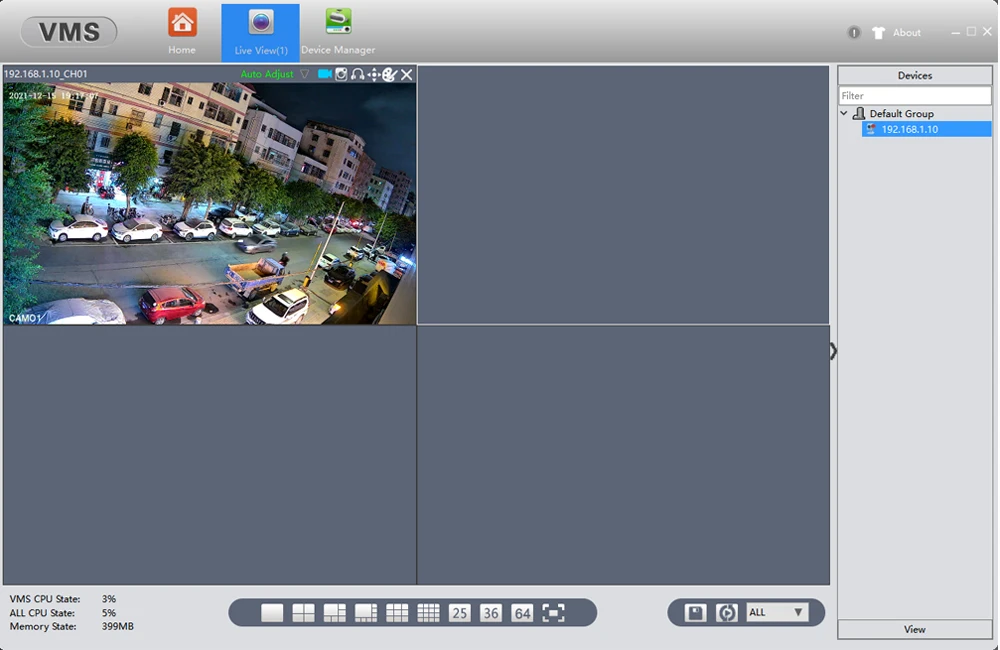

Stronger network service. support IE browse and CMS software
Build-in org,dyndns.net,oray.net and myq-see.com free DDNS dynamic domain name
Built-in own free DDNS Domain Name Server:
With HDMI-Compatible, Support 4K Output
Support P2P cloud functions

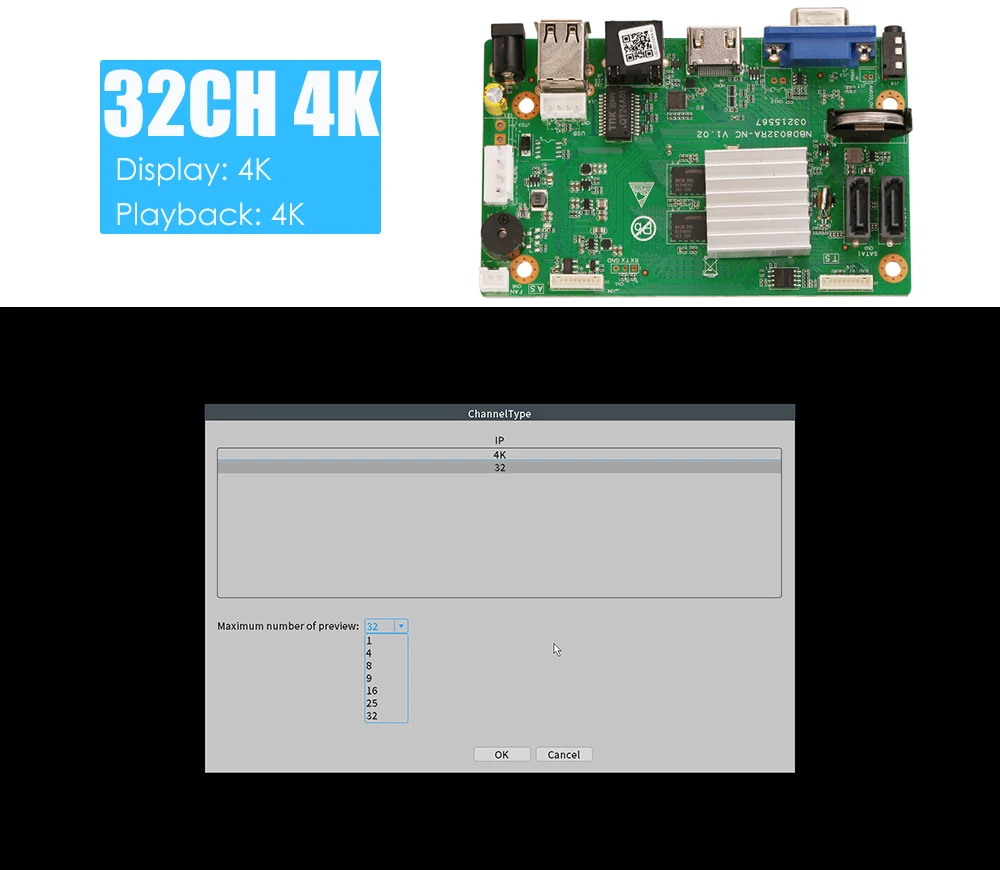

System	Model	36CH	32CH	16CH	10CH	9CH

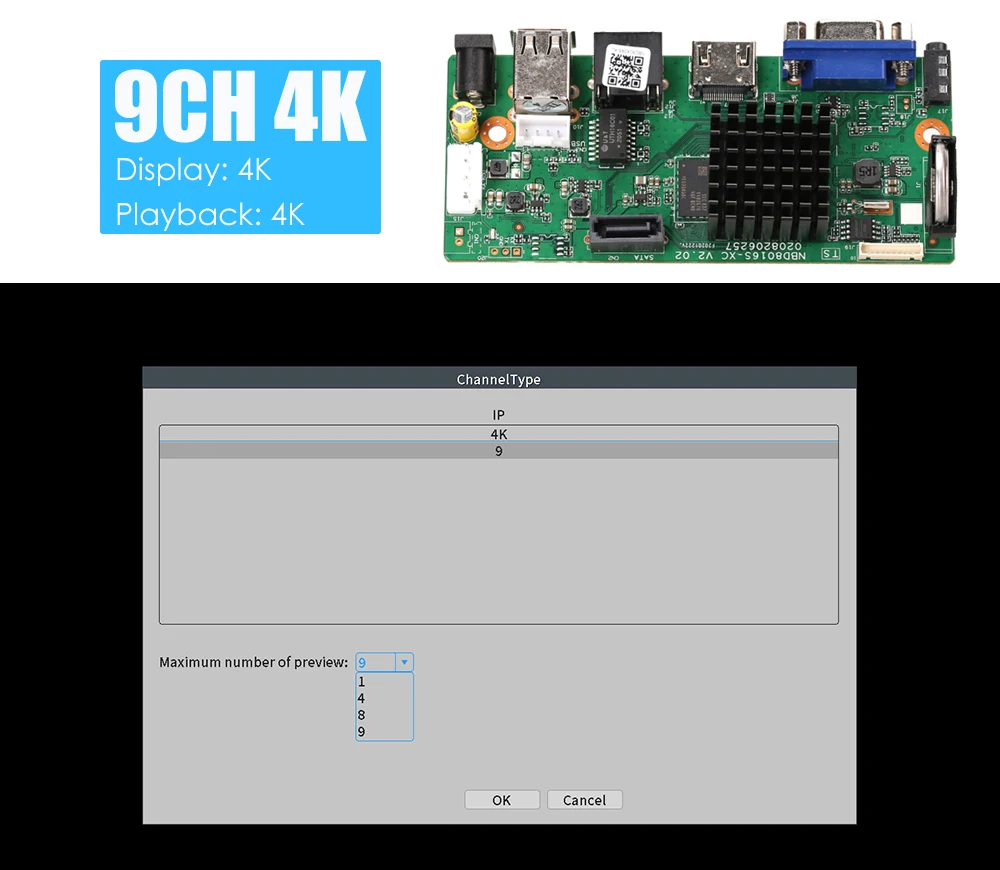

	Chip	NOVA	NOVA	Mstar	Mstar	XM
	Operating System	Embedded Linux
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Material	Case	Metal+Plastic	Metal+Plastic	Metal+Plastic	Metal+Plastic	Metal+Plastic

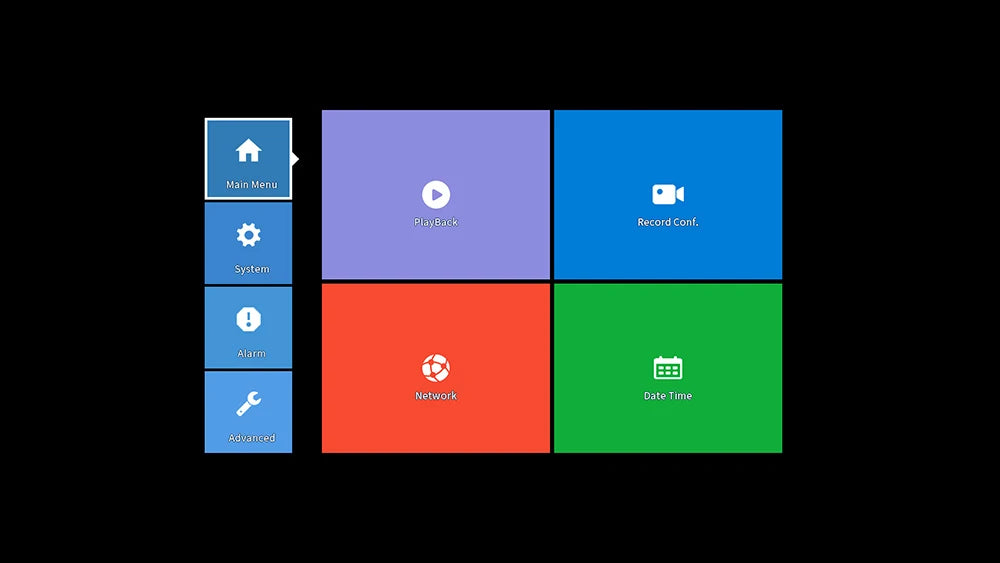

Interface	Operator interface	16-bit true color graphic menu operation interface, support mouse operation
	Preview	1/4/8/9/16/25/32/36	1/4/8/9/16/25/32	1/4/8/9/16	1/4/8/9/10	1/4/8/9/10
Video	Video input (IP)	36CH*4K	32CH*4K	16*4K	10*4K	9*4K
	Video compression	H.265/H.264
	H.265 Require	H.265 Must be the same program Item, or not work.
	Display quality	Max 4K	Max 4K	Max 4K	Max 4K	Max 4K
	Playback quality	Max 4K	Max 4K	Max 4K	Max 4K	Max 4K
	Car Detection	Support	Support	Support	Support	Support
	Motion Detection	Support	Support	Support	Support	Support
	Face Detection	Support	Support	Support	Support	Support
	Face/Human Compatible cameras: (Only) Netip Protocol Face IP Camera Please note, to work human detection and face detection, you need to have compatible ip camera! We have recommend IP camera as below: Normal 4MP 5MP 8MP Face camera link: https://usafeqlo.aliexpress.ru/store/group/Ip-%D0%BA%D0%B0%D0%BC%D0%B5%D1%80%D0%B0-XmEye-Face/2086009_30000000060440.html?spm=a2g0o.store_pc_groupList.0.0.6cbf11a81XqxEW Better IMX335 IMX307 Face camera link: https://usafeqlo.aliexpress.ru/store/group/Xmeye-IMX307-IMX335/2086009_40000001799612.html?spm=a2g0o.store_pc_groupList.0.0.2eeb6e100X6qoX
	Human Detection	Support		Support	Support	Support
	Decode	4K 8MP/5MP/1080P
	VR	Unsupport
	Motion detection	Support(depend on camera)
	Recording mode	Manual>Alarm>Dynamic Detection>Timing
	Local payback	Max 4K		Max 4K	Max 4K	Max 4K
Record & playback	Search mode	Search by Time/Calendar/Event/Channel
	Record storage,usafeqlo	HDD,Network
	Backup mode	Network backup, USB hard disk, USB burner, SATA burner
	Video output	1ch VGA,1ch HDMI-Compatible HD output
	Audio I/O	0/0
External interface	3G/Wifi	36CH Support	32CH Support	16CH Support	10CH Support	9CH Not Support
		10CH 16CH Please ask seller send firmware Wifi function
	Network interface	1*RJ45 10M/1000MBPS		10/100MBPS
	USB interface	2*USB2.0 ports (Not support the keyboard)
	HDD	1* SATA(Up to 14TB for each disk)
	ESATA	Not Support
	Audio Out	1 Channel
	Third Protocol	Support Some (Support Most of Camera, but if you use Reolink,HIK,Dahua cameras, please ask your camera seller weather can support Xmeye nvr .)
	Power supply	12V/2A
Other	Power Consumption	<10W(Without HDD)
	Work environment	Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp
	Dimension	L255W245H42mm
	Weight	A total of about 920g
	Model	1036/32/16/10/09R-KL
